Product Introduction：

VP vertical press filter is fully new generation automatic equipment designed and developed by our company. It is adopted slurry solids gravity and combined with high pressure water pump rubber diaphragm squeeze and compressed air drying system to realize the high efficiency solid-liquid separation through the customized filter cloth.

Product Application：

VP vertical press filter are widely used in new energy, chemical, mineral separation.,etc high-value-added products industry,it is a high capacity, energy saving, full automatic solid-liquid separation filter equipment.

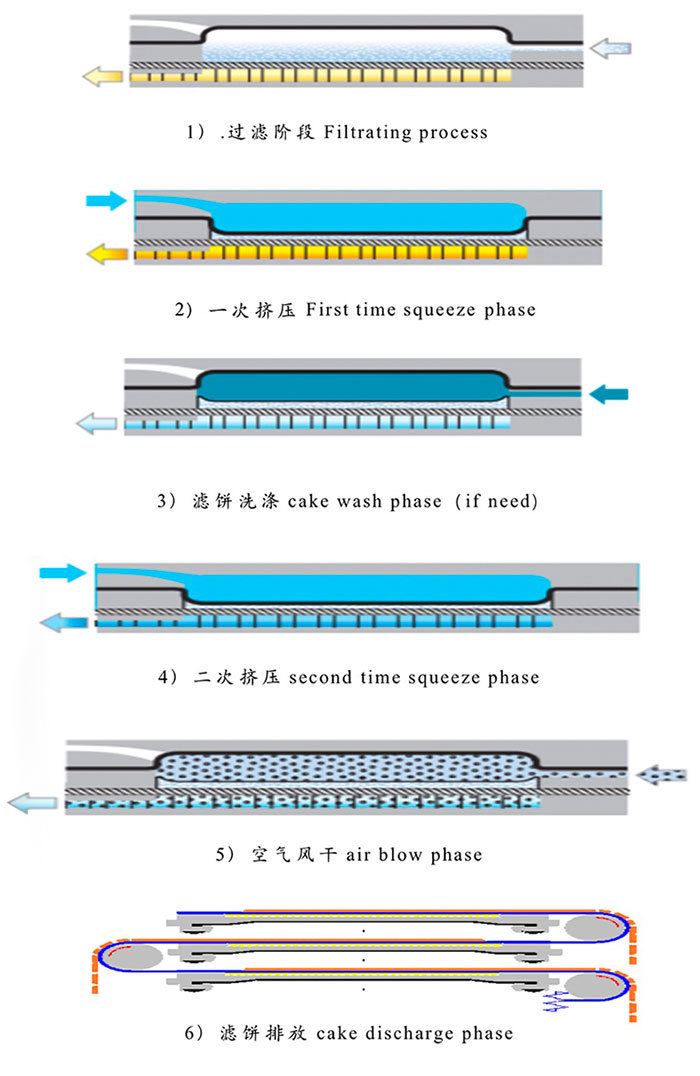

Work Procedure：

Slurry feeding and filter:feeding slurry into the filter chamber,filtrate goes out through filter cloth with the slurry feeding pressure and filtrate gravity, and solids formed into cake on the cloth surface.

Slurry pipe flushing: flush out the slurry solids of slurry pipes before enters into next procedure.

Rubber diaphragm extrusion:inject the high pressure water to inflate the rubber diaphragm to squeeze the cake under the high pressure water pump function, then get lowest cake moisture.

Cake washing(option): the cake washing water be injected into the slurry chamber through slurry pipes, the water soaking the cake and replacement the mother filtrate,and the washed water discharge from the filtrate outlet.

Second time rubber diaphragm extrusion:same to first time extrusion.

Air blowing: let the compressed air go through the cake and take out moisture, to get the lowest cake moisture.Meanwhile can take out the filtrate of filtrate pipe and slurry pipe.

Cake discharge and cloth washing:the hydraulic drive motor drive the cloth running and then the cake discharged at the two ends of the plate with the scraper device function.We designed the cloth washing water pipe with high pressure water spray nozzles to avoid the cloth blocking, prolong the cloth use life.

Product Advantages：

● Performance stably,high efficiency

● Full automatic PLC intelligent system, reduce labor costs and operation costs

● Filter pressure can reach to 2.0 Mpa, cake distribution evenly and lower moisture

● Compact structure design, space cover small

● Maintenance simple

● Energy saving

● High efficiency cake washing, filter, extrusion, cake washing, drying, cake discharging and cloth washing cloth are full automatically and continuously

Specification List：

After-sales Service and Technical Support：

Our company has the complete management system and high efficiency technical service team, we can provide quick reply once the equipment has defaults, provide 7*24h service.

Our experienced technical team could track and figure out the equipment fault reason and provide the resolution at the early time assure the customer’s produce.

Supply the customized resolution to avoid future similar defaults again in the future.

● Professional service team assure the quick reply

● Professional international service team combine remote service and local service, resolve the problem in short time.

● We give the quality assurance to all the spare parts of filter equipment according to applications.

● Our service covered all the filter equipment models globally.
