Product Introduction：

DU rubber belt filter is a high efficiency automatic and continuously filter equipment.It adopts the fixed vacuum box,rubber belt and cloth move on the slide way of vacuum box, and it realize the continuously automatic slurry feeding,filter,cake washing,cake discharge,water recycling and filter cloth regeneration process, to meet the various application requirements. Our rubber belt filter performance and quality already reached the world first level after our several generations updates.

Product Application：

DU rubber belt filter are widely used in mineral separation, chemical, coal chemical, metallurgy, FGD, foods, pharmacy and environment protection industry solid-liquid separation process.

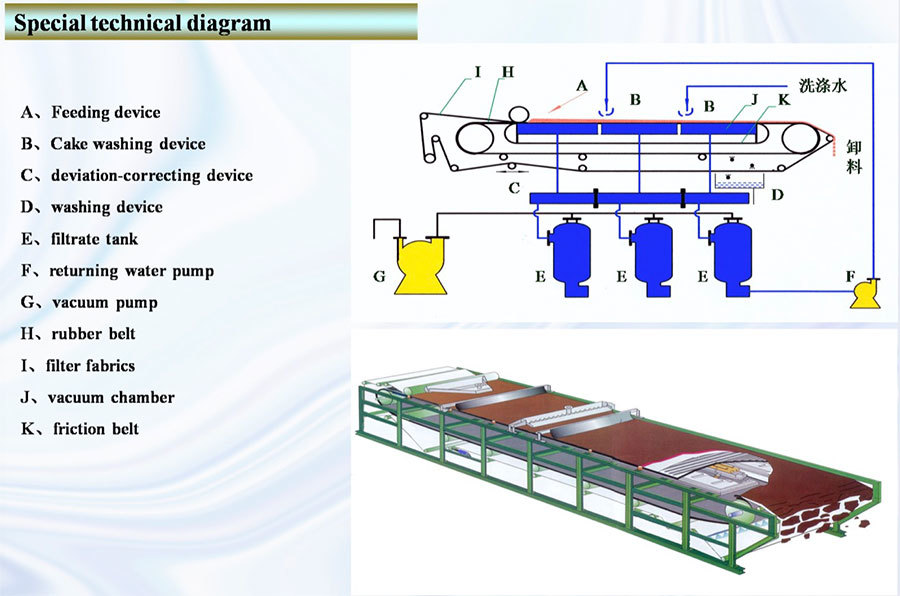

Working Principle：

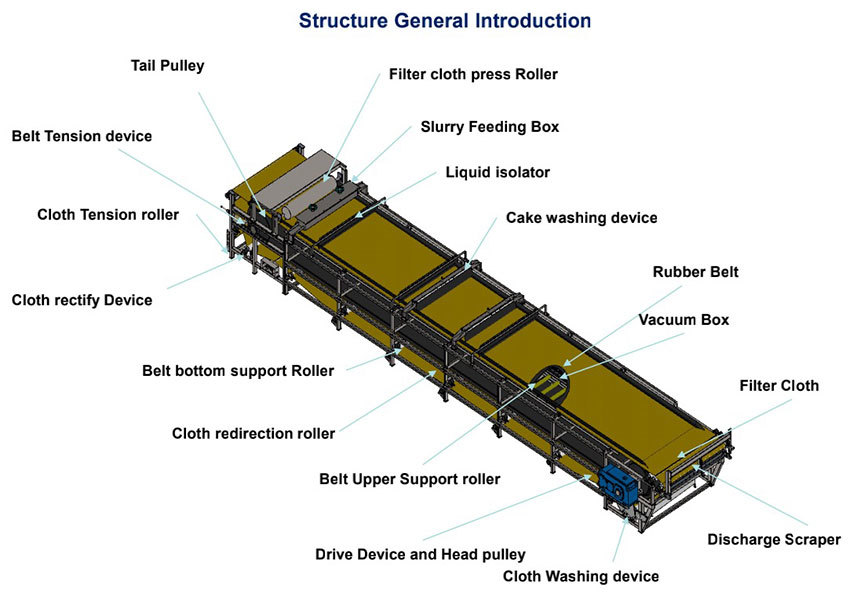

The drive device drives endless rubber belt running continuously, it forms a water sealing channel between rubber belt and vacuum box’s slide way through a endless friction belt, and avoid to break the vacuum circumstance.It’s filter media is filter cloth, the slurry be fed to the cloth evenly through a slurry hopper.

When the vacuum pump turns on, it will forms a vacuum zone on the endless rubber belt surface, filtrate goes through the filter cloth,enters into vacuum box through the holes of the groove under the vacuum suction and gravity, and solids forms into cake on the cloth surface.Then filtrate he discharged by filtrate tank. With the rubber belt running,the cake will come to the cake washing zone, drying zone and then be discharged by scraper at the end of the filter.And the cloth will be washed and come to next recycle.

Product Advantages：

● Structure strength properly and suitable for the high capacity application.

● High efficiency, low cake moisture

● It’s full automatic realize continuously slurry feeding,filter,cake washing(current washing, counter-current washing),cake discharge and cloth regeneration.

● Simple installation, operation, and maintenance

● Adopted PLC control progress,can realize local and remote automatic control.

● Less vulnerable spare parts, low operation and maintenance costs

Specification List：

After-sales Service and Technical Support：

Our company has the complete management system and high efficiency technical service team, we can provide quick reply once the equipment has defaults, provide 7*24h service.

Our experienced technical team could track and figure out the equipment fault reason and provide the resolution at the early time assure the customer’s produce.

Supply the customized resolution to avoid future similar defaults again in the future.

● Professional service team assure the quick reply

● Professional international service team combine remote service and local service, resolve the problem in short time.

● We give the quality assurance to all the spare parts of filter equipment according to applications.

● Our service covered all the filter equipment models globally.
